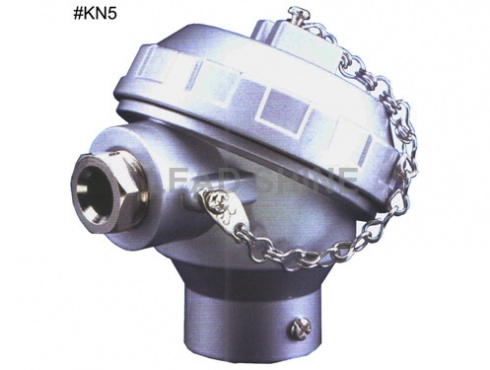

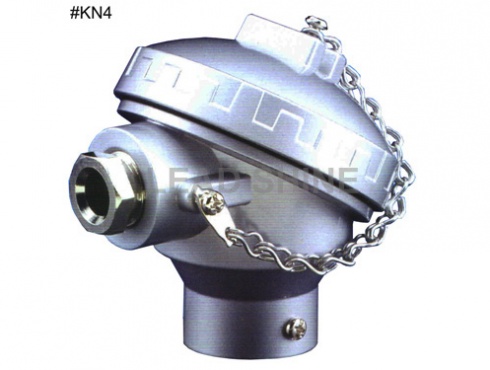

Aluminum Thermocouple Head (KN)

Model: KN3, KN4, KN5

Made in Taiwan

  • All screws, washers and chains are S. Steel.
  • The coating meet ROHS requirement.
  • IP68 rating.
  • General and popular type
 Add to Inquiry

Aluminum thermocouple connection head and junction box

  • Material: Alloy-Aluminum- ADC12. (It is most suitable for die-casting aluminum alloy.)
  • Available Colors: Silver, Purple, Blue, Red, Black, Yellow (PANTONE or RAL) (Liquid coated or Epoxy coated are available upon request.)
  • Protection Tube Entry: PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2", BSP3/4". M20x1.5, M24x1.5, Bare Bore
  • Extension Wire Entry: PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2". BSP3/4", M20x1.5, Bare Bore
